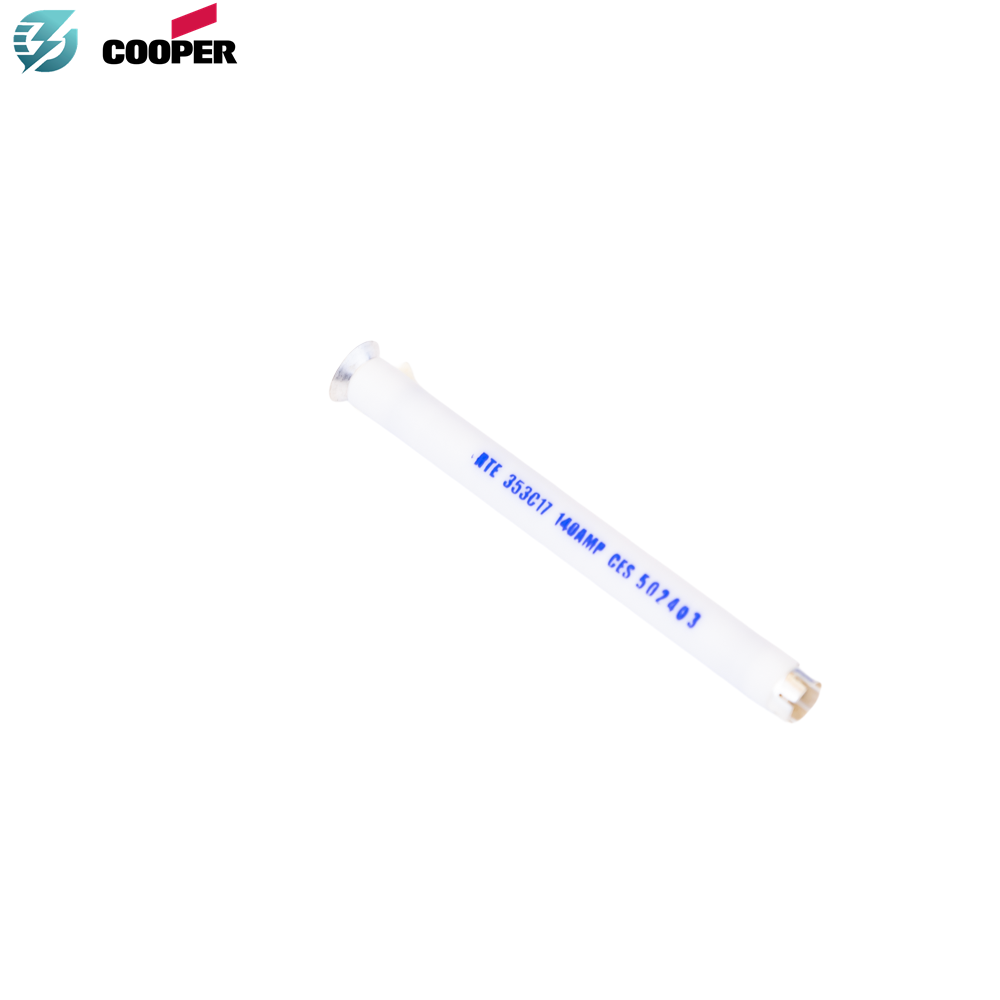

Eaton Cooper Power Series Current Sensing Bay-O-Net Fuse Link 4000353C04 / 4000353C16 for Pad-Mounted Transformer

Product Specifications

Product Name: Eaton Cooper Power Series Current Sensing Bay-O-Net Fuse Link

Rated Voltage: 8.3kV, 15.5kV, 23.0kV Class

Rated Current: 6A, 10A, 15A, 25A, 40A, 65A, 100A, 140A

Type: Current Sensing (Off-Load/Off-Circuit) Plug-in Fuse Link

Color: White / Silver

Available Models & Current Ratings

• 6A Fuse Link: 4000353C04B (Individual) / 4000353C04M (Bag of 50)
• 10A Fuse Link: 4000353C06B (Individual) / 4000353C06M (Bag of 50)
• 15A Fuse Link: 4000353C08B (Individual) / 4000353C08M (Bag of 50)
• 25A Fuse Link: 4000353C10B (Individual) / 4000353C10M (Bag of 50)
• 40A Fuse Link: 4000353C12B (Individual) / 4000353C12M (Bag of 50)
• 65A Fuse Link: 4000353C14B (Individual) / 4000353C14M (Bag of 50)
• 100A Fuse Link: 4000353C16B (Individual) / 4000353C16M (Bag of 50)
• 140A Fuse Link: 4000353C17B (Individual) / 4000353C17M (Bag of 50)

Material & Design Characteristics

• Inner Core Tube: Premium TEFLON® Tube providing a highly track-resistant bore capable of safely withstanding full-rated voltage after operation.
• Contacts System: High-conductivity silver-plated brass end contacts ensuring maximum and stable current interchange.
• Sensing Element: Precision engineered corrosion-resistant element guaranteeing highly reliable and predictable fuse operation.

Product Functions

1. Distribution Apparatus Protection: Specifically designed to protect both single-phase conventional/self-protected transformers (up to 500 kVA) and three-phase equipment (up to 1500 kVA) from damaging overload currents and oil temperature rise.

2. Two-Fuse Protection Coordination: Ideal for series connection with an Eaton Cooper ELSP backup current-limiting fuse. The Bay-O-Net link reliably clears secondary faults and overload currents, while high-level faults are isolated by the backup CLF.

3. Economical Field Replaceability: Provides a highly reliable alternative to internal cartridge fuses, offering comparable cost advantages while allowing effortless field replacement without opening the main transformer tank.

Key Features

1. Track-Free Teflon® Technology: Features a built-in genuine Teflon® tube that eliminates the risk of tracking, preventing voltage restrike or insulation breakdown after the fuse element clears.

2. Operator-Safe Hotstick Installation: No special tools required. Line personnel can safely remove the fuse cartridge holder from non-pressurized apparatus and perform quick re-fusing using a standard hotstick.

3. Silver-Plated Brass Contacts: Engineered with premium silver-plated brass end contacts to ensure maximum electrical interface efficiency and eliminate localized overheating risks.

4. Robust Interrupting Capacity: Delivers exceptional single-phase interrupting ratings up to 3,500A rms symmetrical at 8.3kV and 15.5kV, and up to 1,000A rms symmetrical at 23.0kV when operating within mineral oil or FR3 fluid.

5. Flexible Upstream Coordination: Time-current characteristic curves are optimized to allow precise, easy coordination with upstream system protective devices.

Technical Parameter Specifications

• Max. Current Capacity: 140A (Continuous current rating range: 6A to 140A)
• Max. System Voltage: 23.0kV (Interrupting ratings up to 3,500A rms symmetrical at 8.3kV / 15.5kV)
• Model Number Range: 4000353C04 to 4000353C17 (Suffix B / M)
• Primary Applications: Pad-mounted Distribution Transformers, Single-Phase & Three-Phase Wind/Solar Box Transformers, Underground Utilities.
• Standard Compliance: Fully complies with IEEE Std C57.92™-1981 and IEEE Std C57.109™-1993 technical guide standards.
