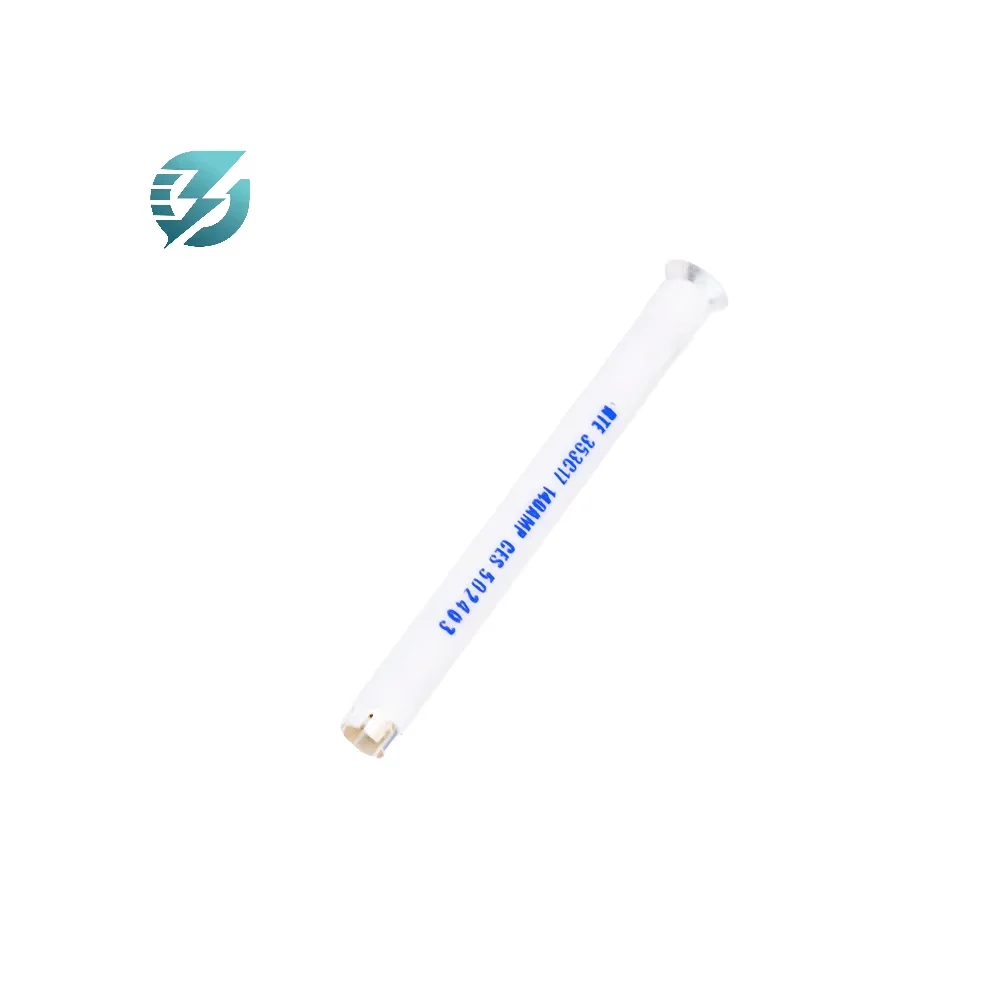

Cooper Current Limiting Current-Type Bay-O-Net Plug-in Fuse

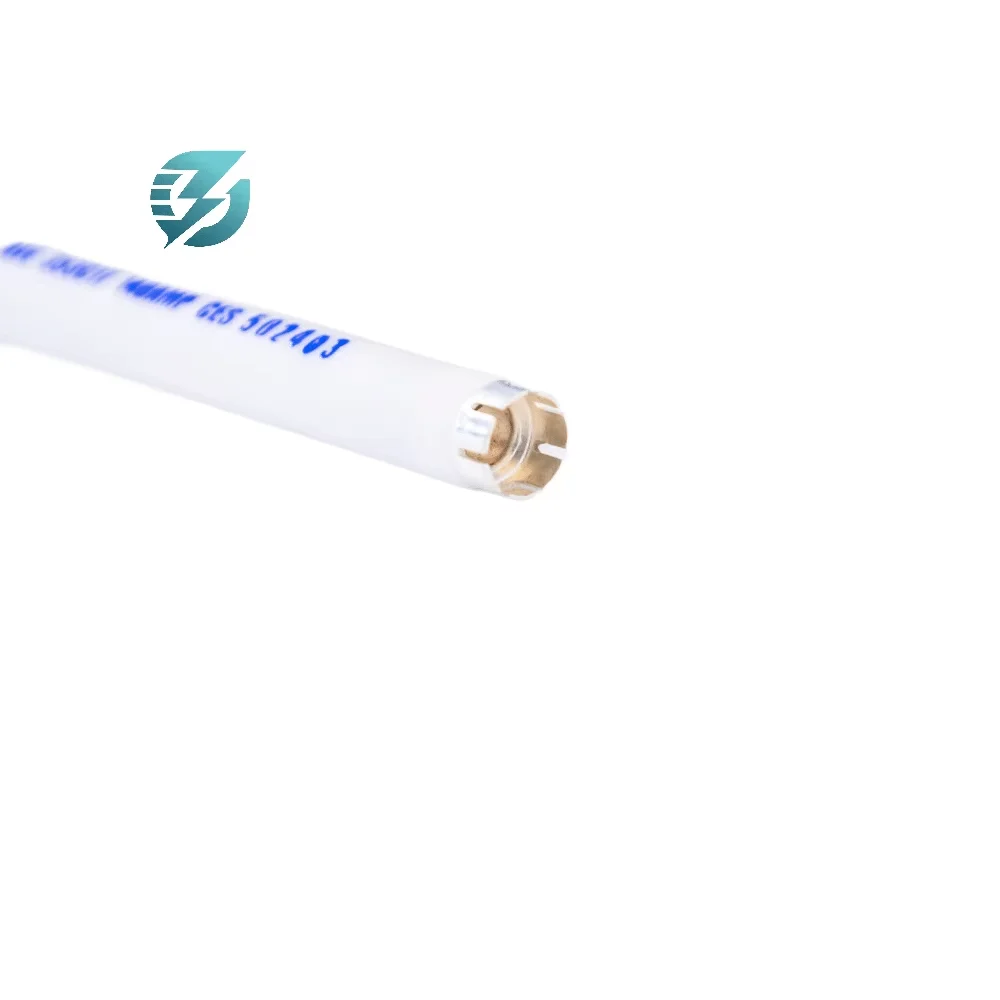

Cooper Current Limiting Current-Type Bay-O-Net Plug-in Fuse - Image 2

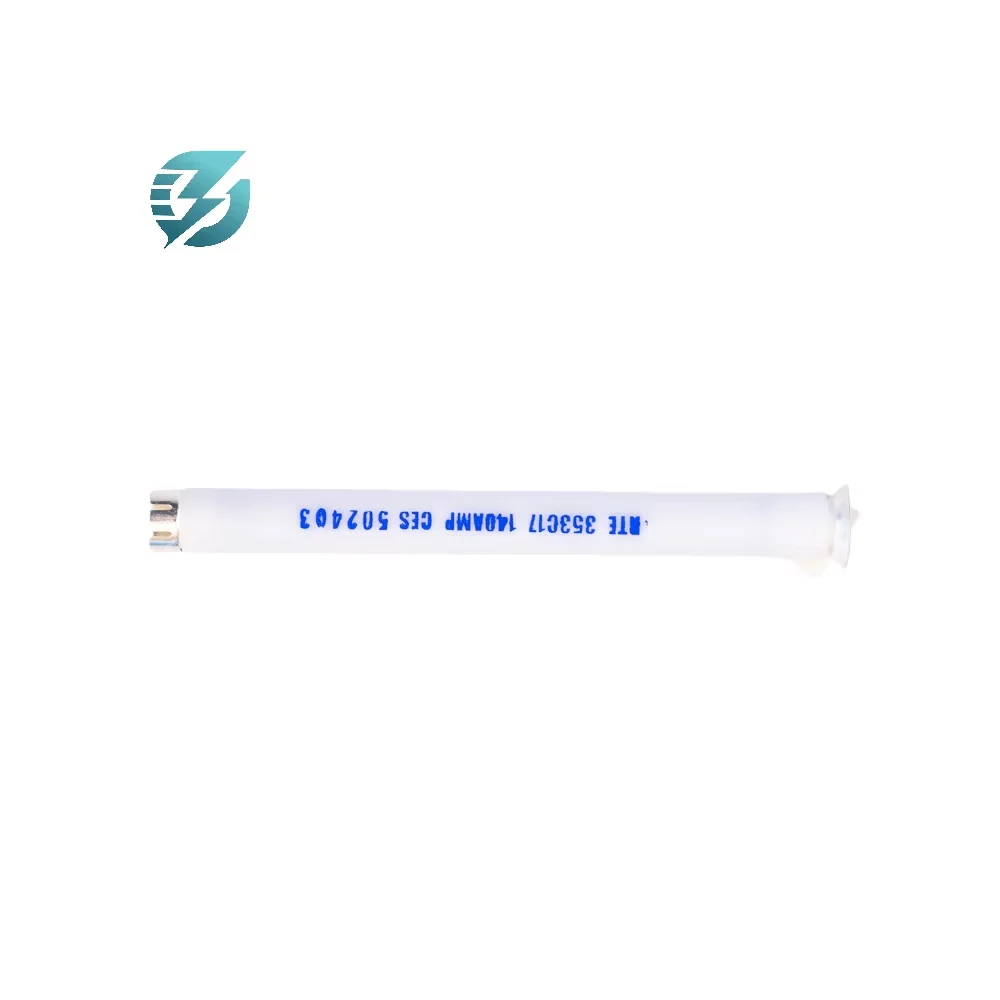

Cooper Current Limiting Current-Type Bay-O-Net Plug-in Fuse - Image 3

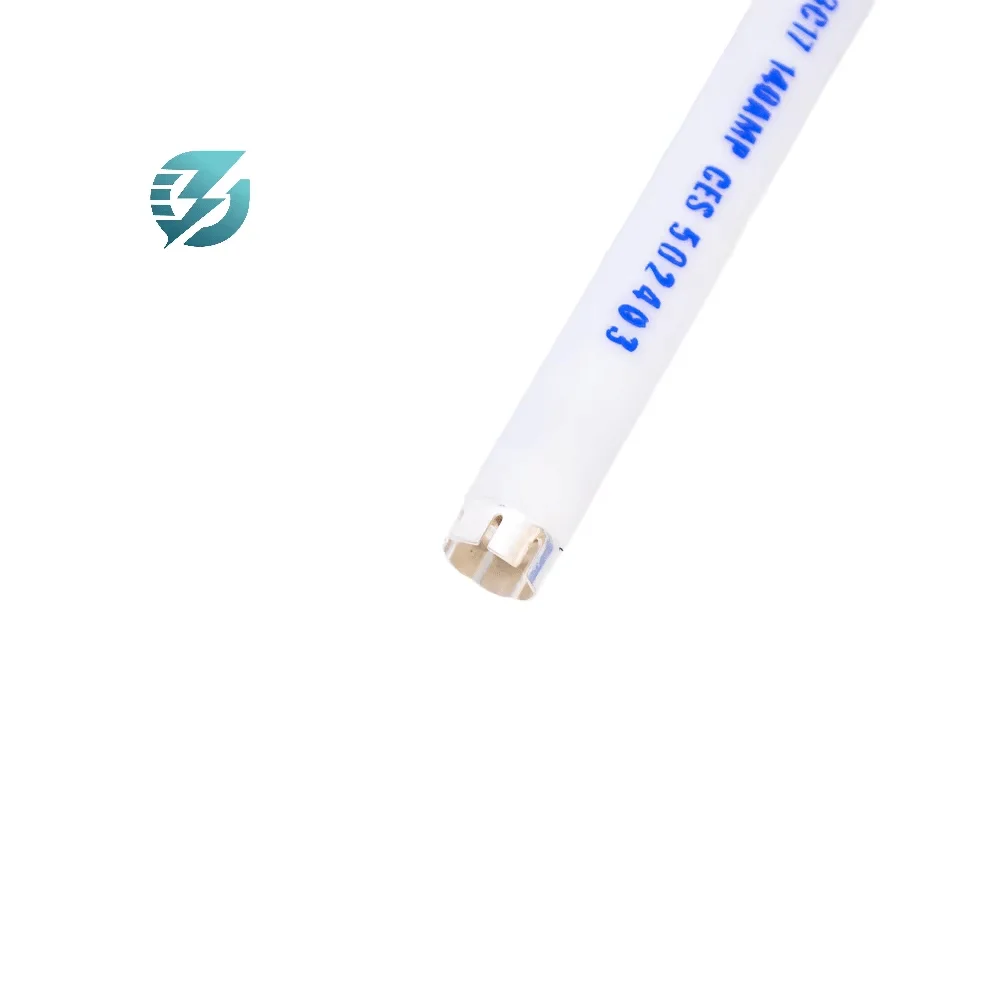

Cooper Current Limiting Current-Type Bay-O-Net Plug-in Fuse - Image 4

Cooper Current Limiting Current-Type Bay-O-Net Plug-in Fuse

Rated Current: 6A, 10A, 15A, 25A, 40A, 65A, 100A, 140A
Rated Voltage: 8.3KV, 15.5kV, 23kV
Model Number: 4000353C06B/08B/10B/12B/14B/16B/17B
Type: Current-Type Fuse
Rated Frequency: 60Hz
Product name: Current-Type Fuse
Application: Isolate faulty equipment and protect the power distribution system
Voltage: 34.5KV

Send Inquiry
WhatsApp Us
Categories: ,

Why Us?

  • Reliable Supply Chain
  • Quick Response
  • Technical Support
  • Genuine Product Authorization

Description

Product name
Current-Type Fuse
Rated Voltage
8.3kV、15.5kV、23kV
Rated Current
6A、10A、15A、25A、40A、65A、100A、140A
Model
4000353C04B（6A）、4000353C06B（10A）、4000353C08B（15A）、4000353C10B（25A）、4000353C12B（40A）、4000353C14B（65A）、4000353C16B（100A）、4000353C17B（140A）
Rated Frequency
60Hz
Type
Current protection type: basic fuse

Function

1. Overload protection on the high voltage side of the American box transformer and fault protection on the secondary side of the transformer; 2. Connect in series with the backup protection fuse (ELSP) to form a “two-stage protection” to isolate fault currents; 3. Suitable for single-phase transformers ≤ 500kVA, three-phase transformers ≤ 1500kVA, and self-protection transformers

Feature

1. Silver-plated copper umbrella-shaped contact fingers: reduce contact resistance and improve conductivity stability;
2. Corrosion-resistant melt: Ensure reliable melting action and avoid accidental triggering;
3. TEFLON ™ Bushing: high temperature resistance, anti-aging, improving insulation performance;
4. Install the plug-in fuse tube, which does not require complex tools for replacement and is easy to install
