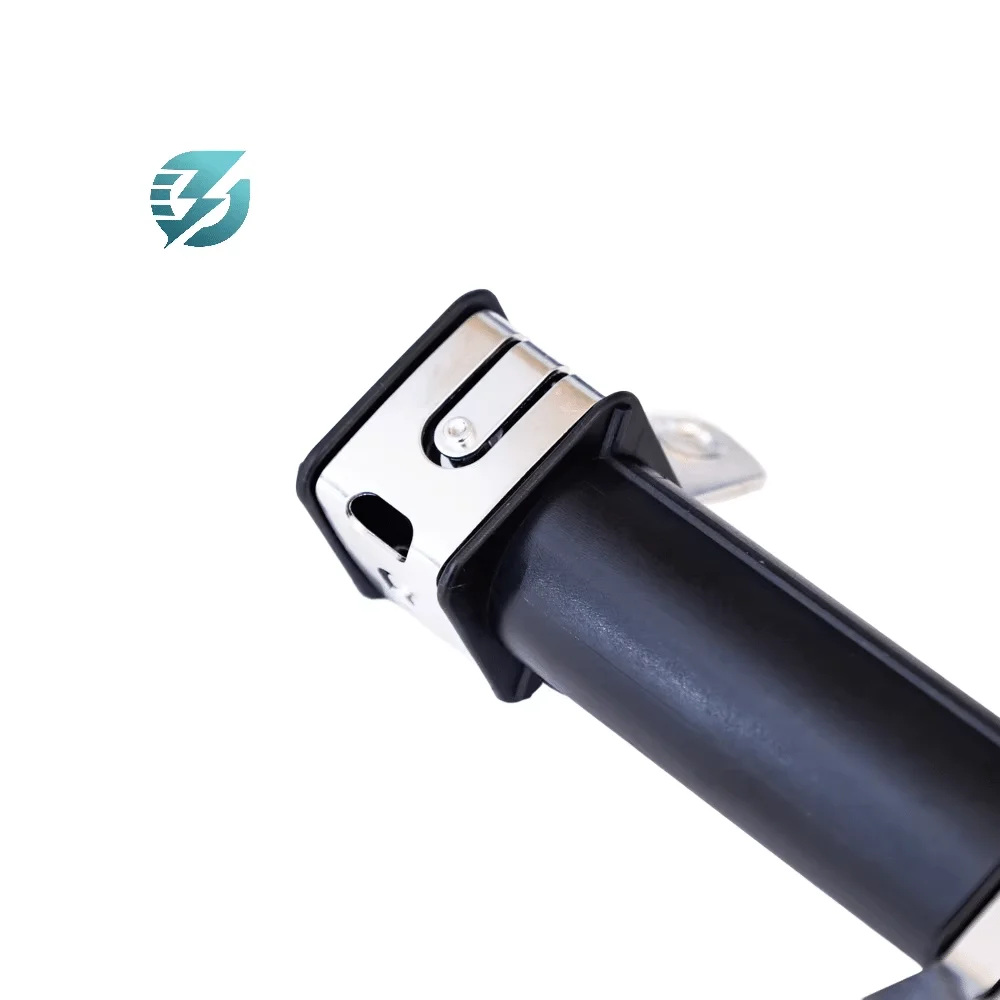

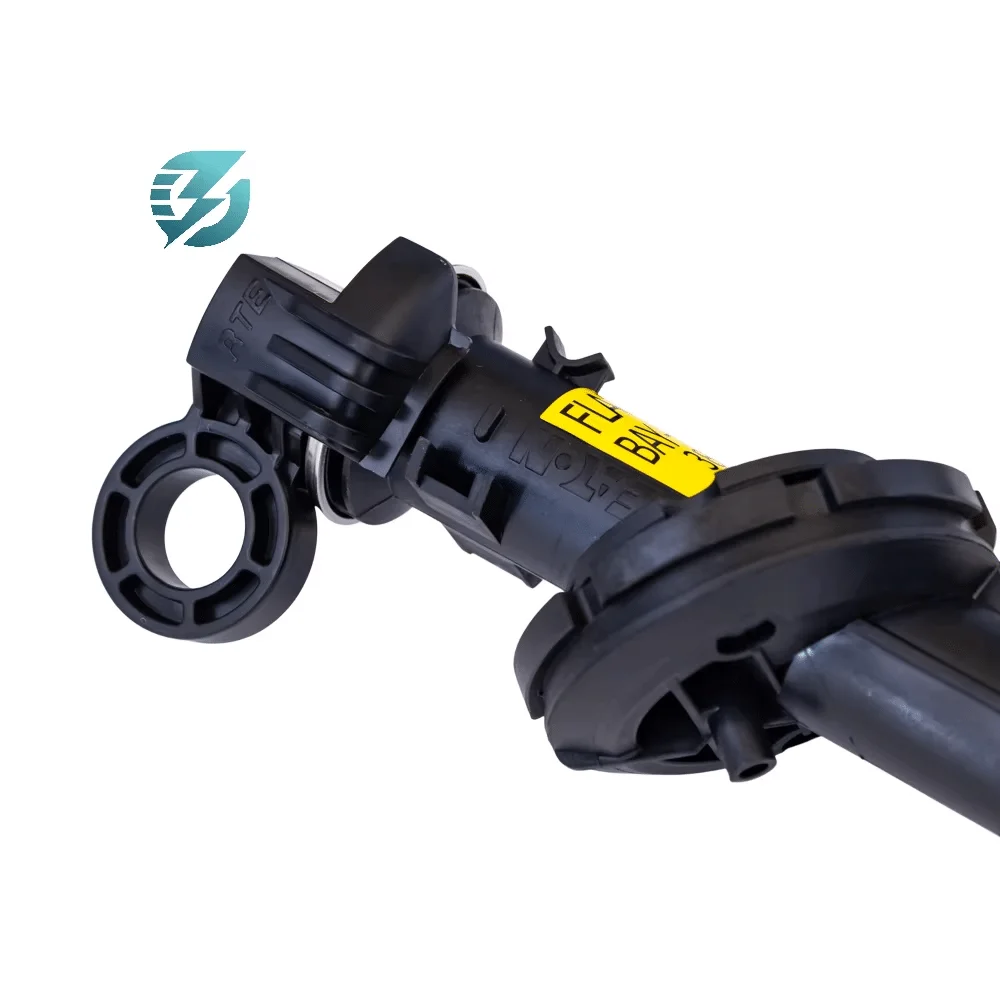

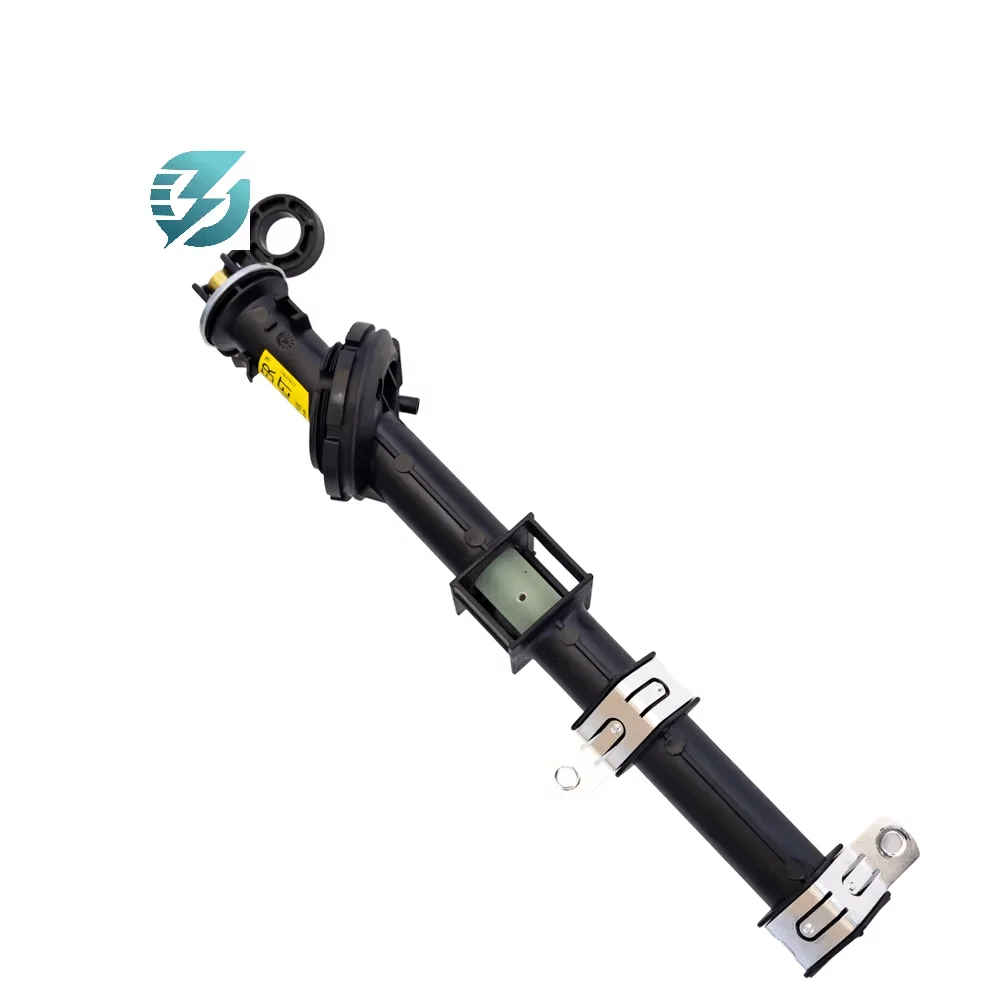

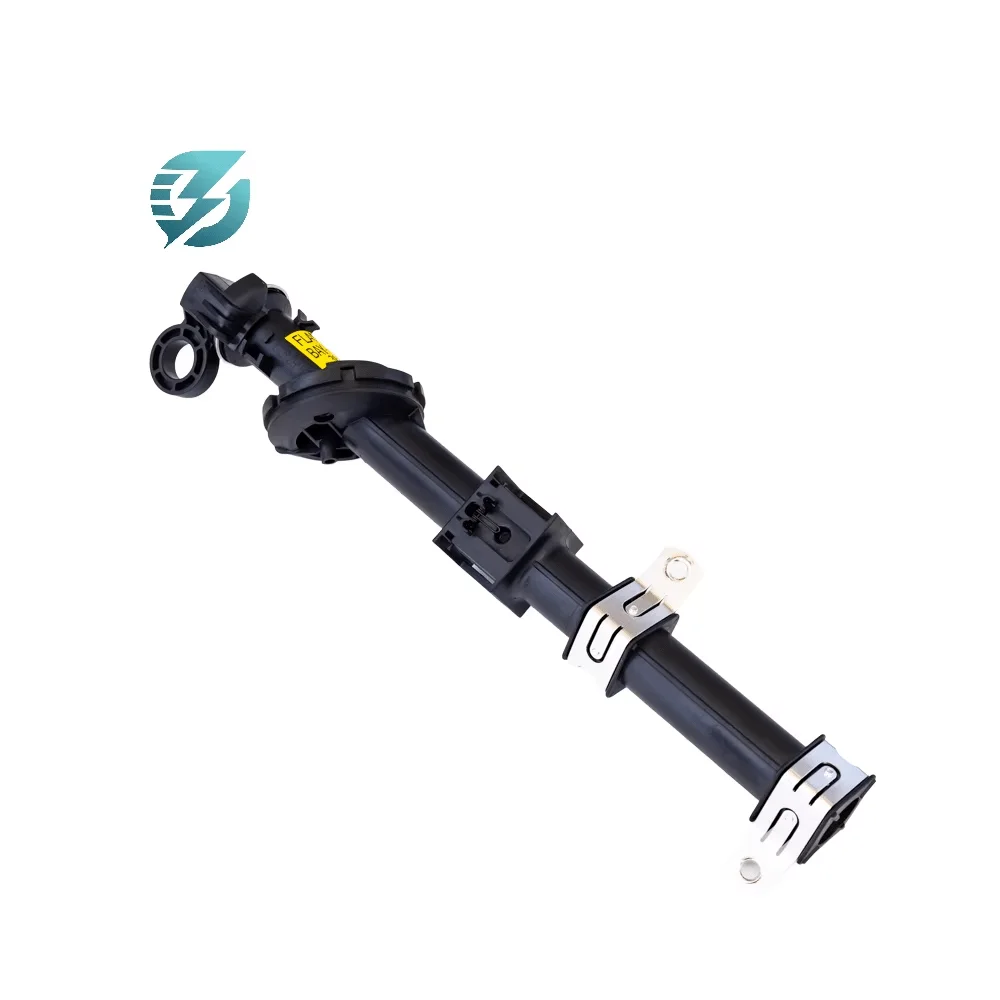

Cooper 10A~120A 38kV Black Holder Bay-O-Net Fuse Tube Transformer Protection

Cooper 10A~120A 38kV Black Holder Bay-O-Net Fuse Tube Transformer Protection - Image 2

Cooper 10A~120A 38kV Black Holder Bay-O-Net Fuse Tube Transformer Protection

Rated Current: 200A
Rated Voltage: 38KV
Model Number: 4038380B03M
Type: 38kV Plug-in Fuse Tube
Rated Frequency: 60 Hz
Product name: 38kV Plug-in Fuse Tube (Bay-O-Net Fuse Assembly)

Categories: Pad-Mounted Transformer Accessories, Transformer Fuses

Why Us?

Reliable Supply Chain
Quick Response
Technical Support
Genuine Product Authorization

Description

Product name	38kV Plug-in Fuse Tube
Rated Voltage	38kV
Rated Current	Suitable fuse current range: 10A~120A (38kV Bay-O-Net fuse) Fuse tube current carrying capacity: 200A
Model	4038380B03M
Rated Frequency	60Hz
Type	38kV Plug-in Fuse Tube (Bay-O-Net Fuse Assembly)

Function

1. Equipped with 38kV Bay-O-Net fuses to protect 24-38kV box type transformers (including new energy scenarios such as photovoltaic/wind power); 2. Connect in series with the 38kV ELSP backup fuse to clear high-level faults (such as internal short circuits), and clear low-level faults by the fuse itself; 3. Equipped with a Flapper valve as standard, it automatically closes when the fuse is replaced, reducing transformer oil leakage; 4. High insulation design to meet the electrical strength requirements of 38kV high voltage scenarios

Feature

1. Standard Flapper valve: side-mounted exclusive, automatically closes when the fuse is removed, reducing oil leakage (improving operation and maintenance safety and environmental friendliness);

2. Fully silver-plated terminals: The terminals/contact fingers are silver-plated to improve conductivity reliability and corrosion resistance, suitable for 38kV high-voltage and high current scenarios.

3. High insulation margin: lightning impulse withstand voltage of 200kV, 1-minute power frequency withstand voltage of 70kV, far exceeding the 23kV level, suitable for high-voltage insulation requirements;

4. Strong compatibility: Only compatible with 38kV Bay-O-Net fuses, needs to be connected in series with 38kV ELSP backup fuses, and cannot be equipped with isolation plates
