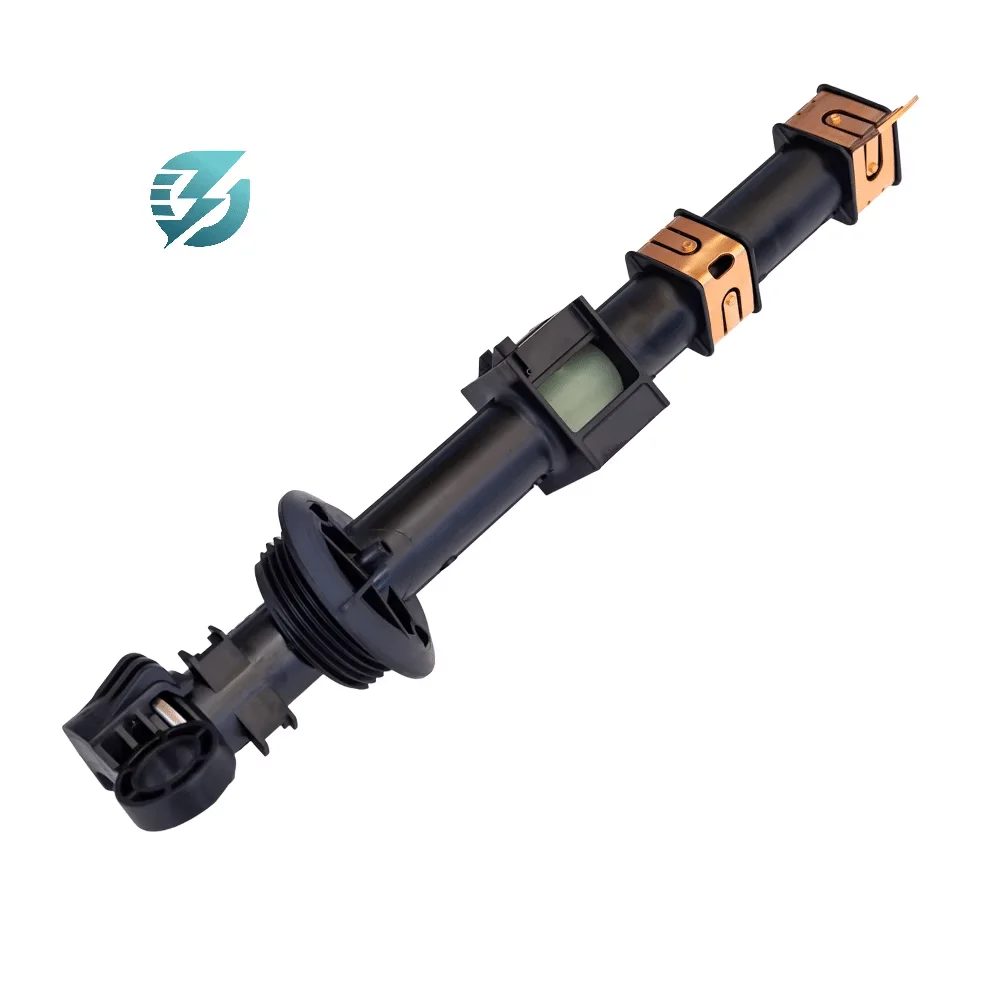

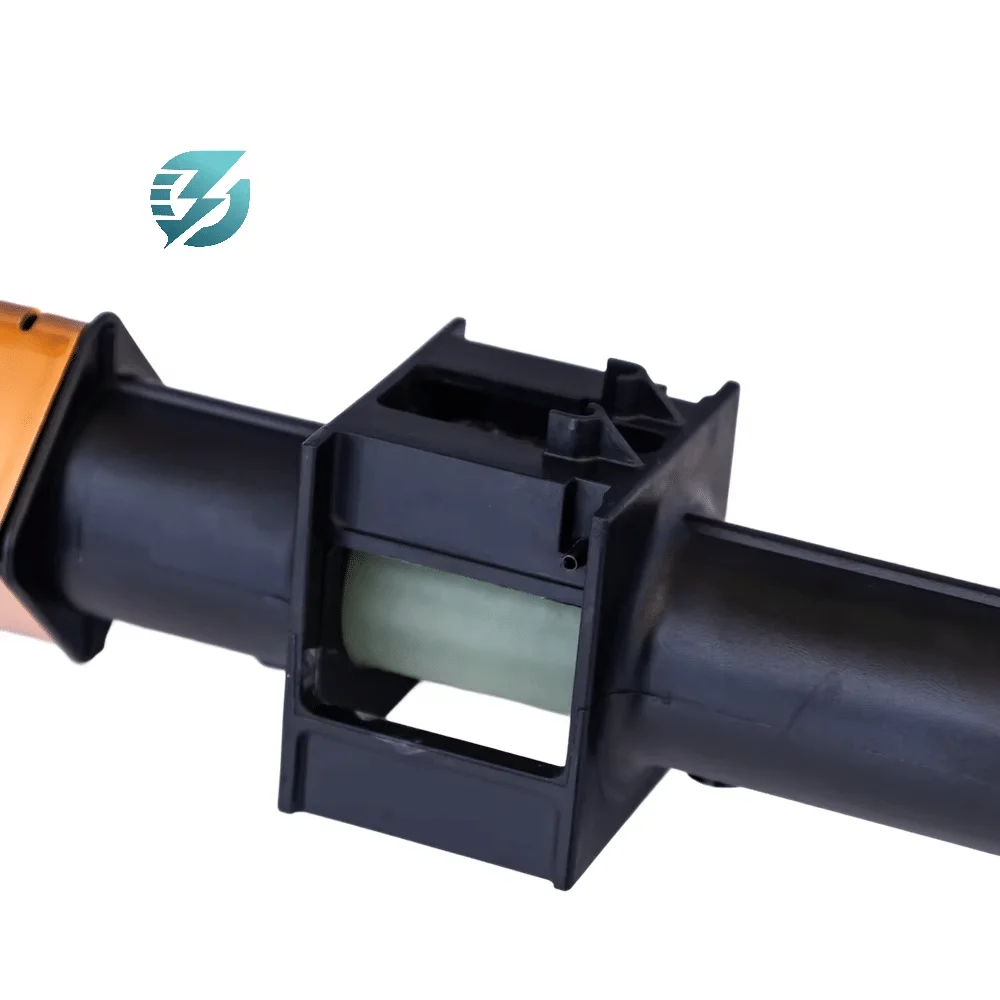

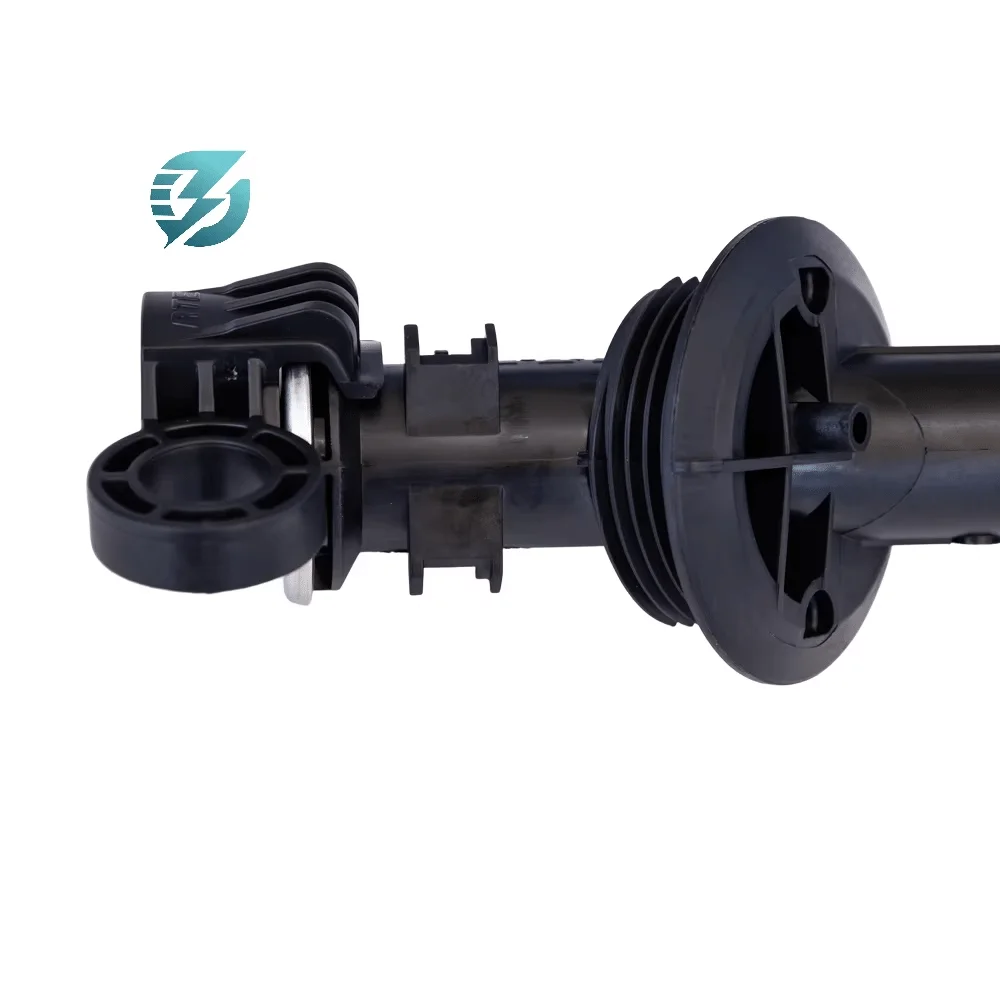

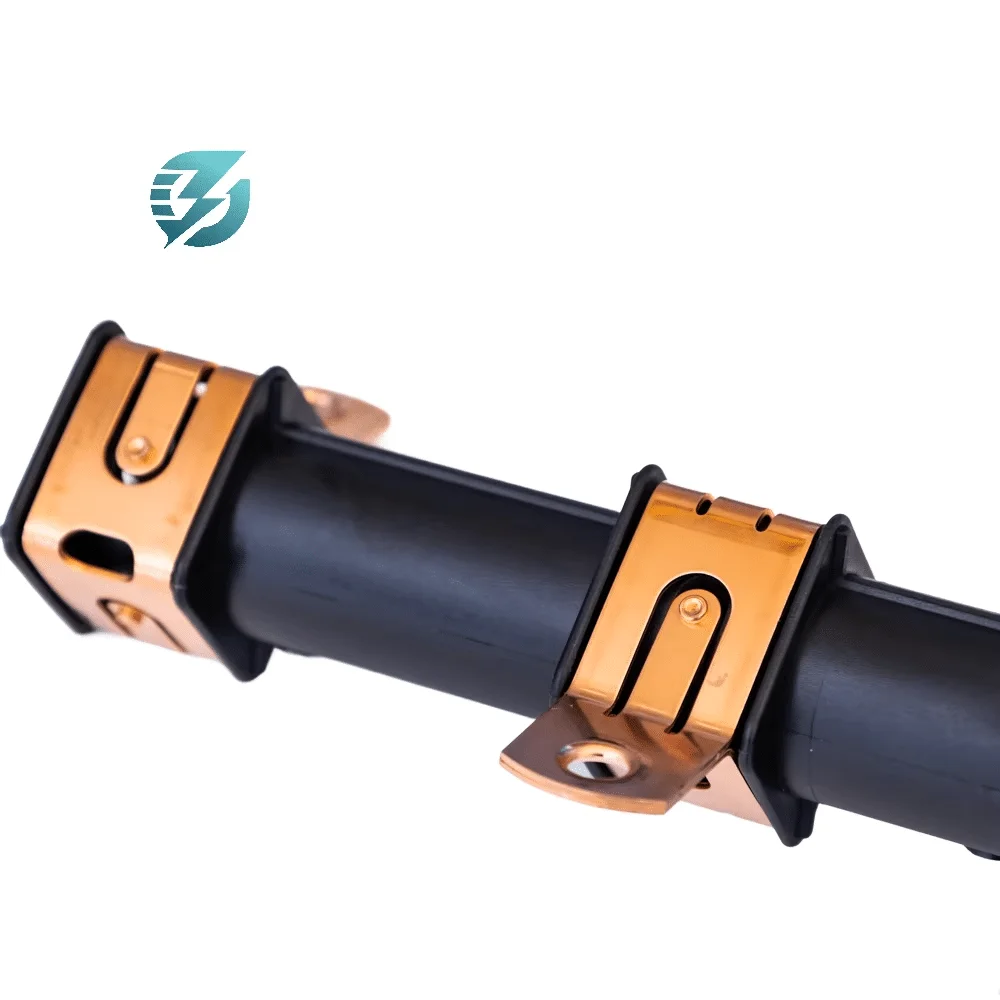

Cooper 3A~140A 23kV Black Holder Fuse Tube Transformer Protection
Rated Current: 3A~140A
Rated Voltage: 23kV
Model Number: 4000361C99FV/4000361C89FV/4038804B03M
Type: 23kV Plug-in Fuse Tube
Rated Frequency: 60Hz
Product name: 23KV Plug-in Fuse Tube
Application: Accommodate and secure the adapter fuse
Why Us?
- Reliable Supply Chain
- Quick Response
- Technical Support
- Genuine Product Authorization
Description
Product name | 23kV Plug-in Fuse Tube (Bay-O-Net Fuse Assembly) |
Rated Voltage | 23kV |
Rated Current | 3A~140A |
Model | 4000361C99FV: Side-mounted/Copper terminal/Complete set 4000361C89FV: Side-mounted/Silver-plated terminals/Complete set
4038804B03M: Side-mounted/Silver-plated terminals/Without fuse holder |
Rated Frequency | 60Hz |
Type | 23kV Plug-in Fuse Tube |
Function
1. To accommodate and fix the adaptive fuse (current type/dual sensitive/dual factor/high overload), forming the core component of the high-voltage side protection of the American box transformer;
2. Connect in series with the ELSP backup fuse to form a “two-stage protection” and isolate fault currents (such as overload and coil short circuit);
3. Support hot rod operation, fuse replacement does not require disassembly of equipment, improving operation and maintenance convenience;
4. Compatible with mineral oil/FR3 insulation oil to prevent oil leakage
Feature
1. Wide adaptability: compatible with 4 types of fuses (current type/dual sensitive/dual factor/high overload), covering most 23kV box transformer protection scenarios; 2. Reliable sealing: Multi-groove nitrile rubber sealing ring+locking nut fastening (180-220 in lb torque), preventing oil leakage; 3. Durable material: The outer tube is made of high-temperature thermoplastic material, which is resistant to the operating temperature of transformers (oil-immersed environment ≤ 130 ℃); 4. Optional silver-plated terminals: reduce contact resistance, compatible with high overload fuses (such as 4038361C series)
