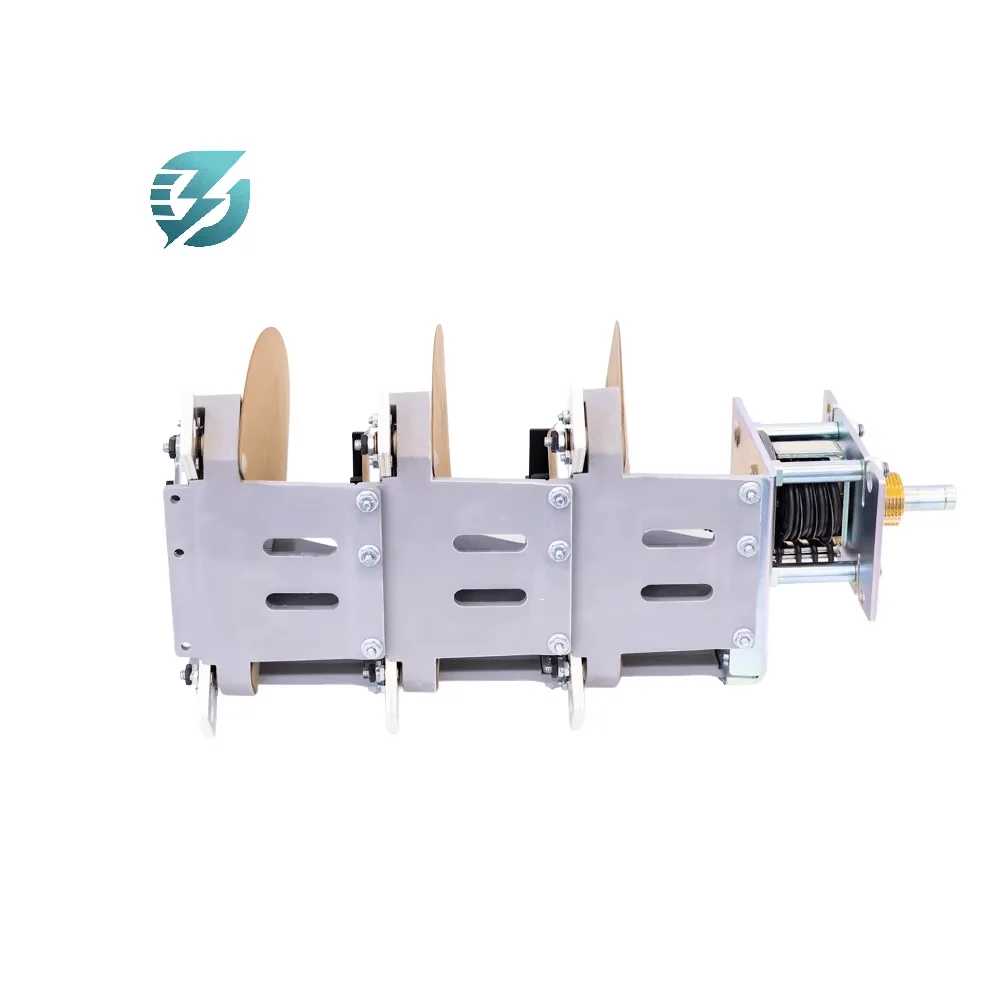

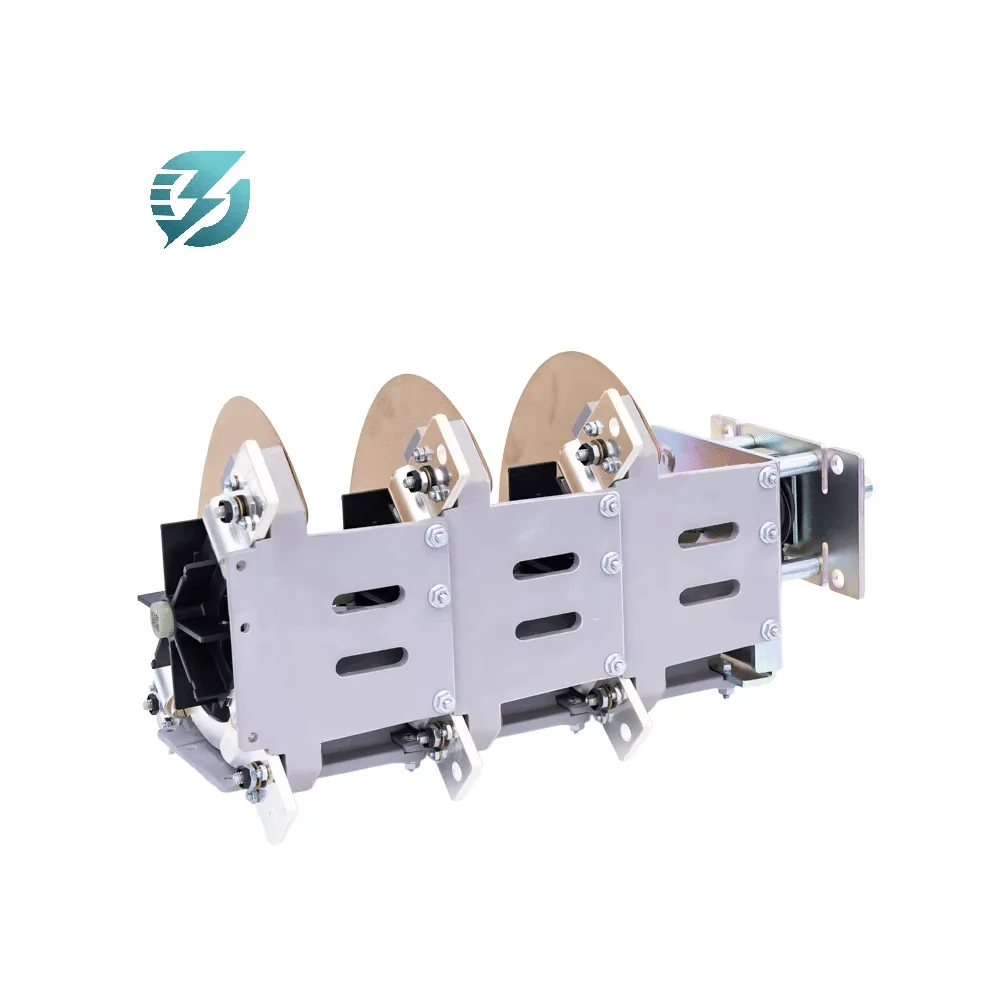

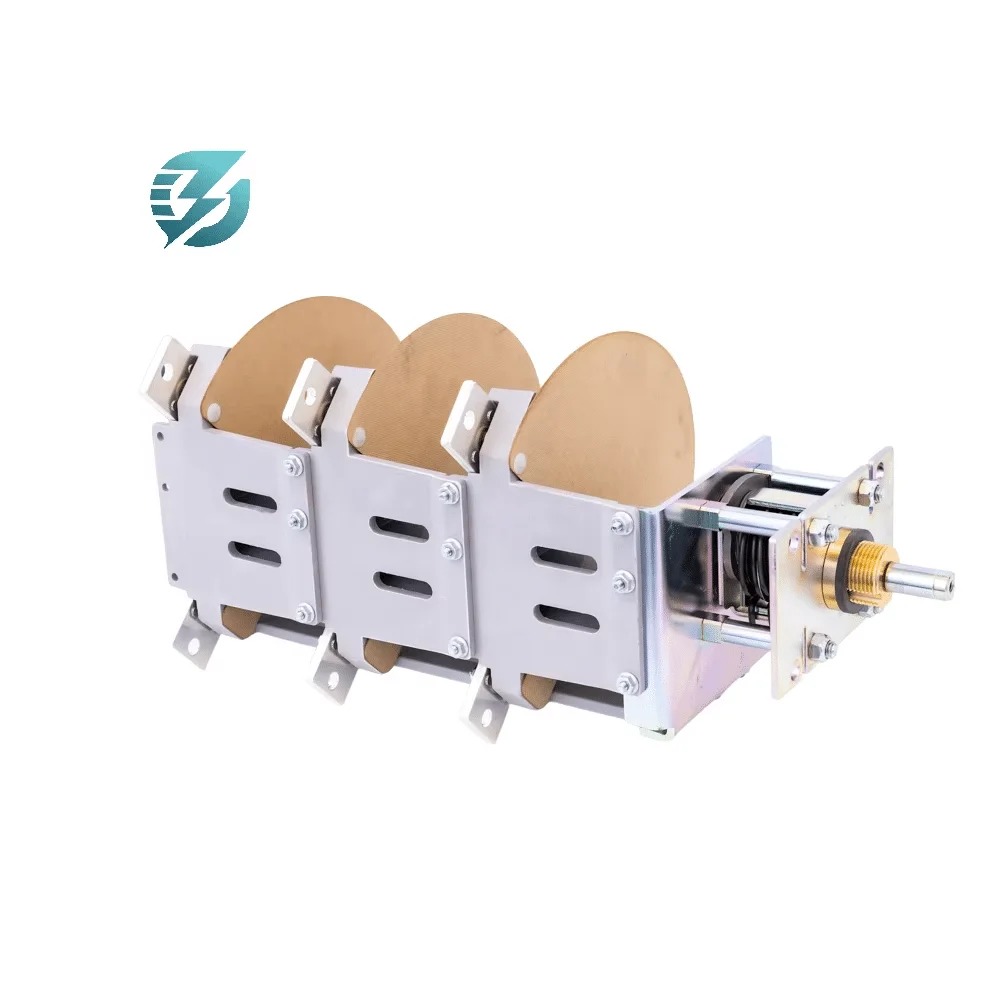

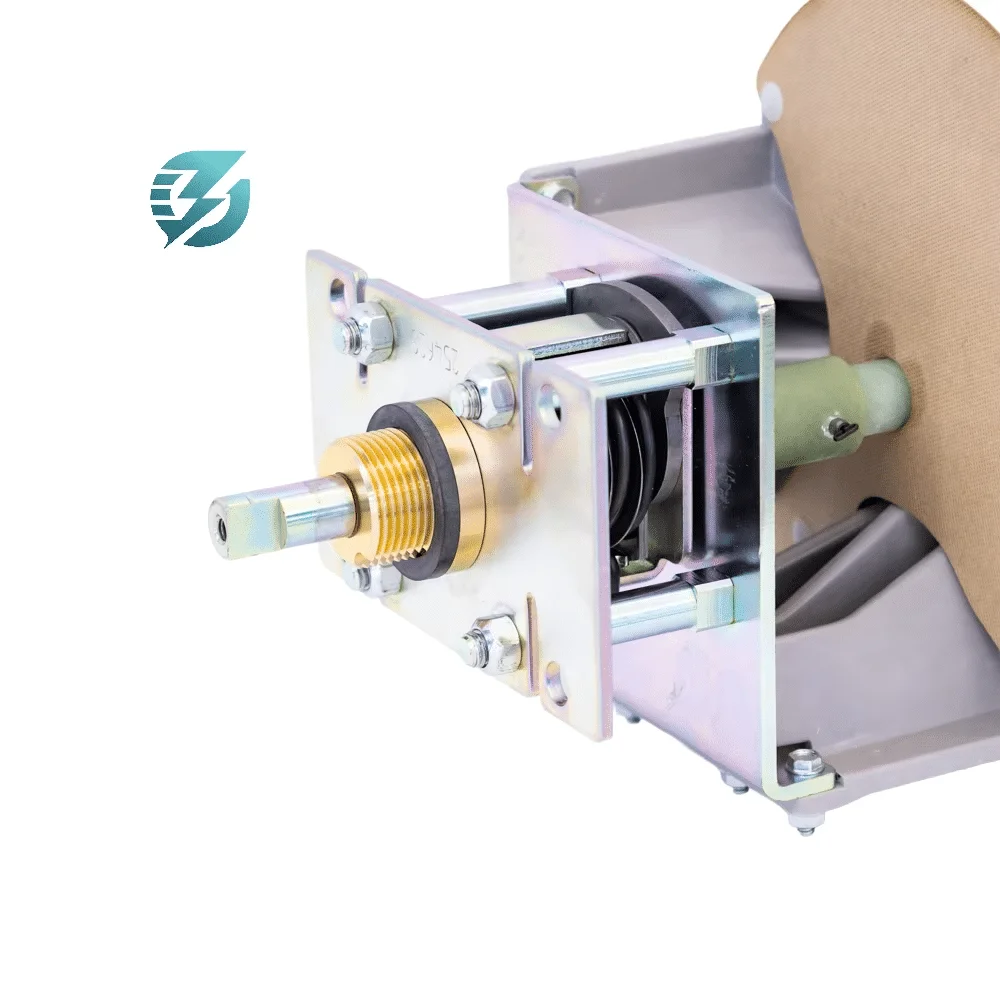

Cooper 200A-630A 15KV-38KV Four-position Loadbreak Switch
Max. Current: 630A
Max. Voltage: 38KV
Model Number: 38kV/200A/3P:LS4RHBV316 ,15kV/630A/3P:LS4RHS312
Application: Electric Industry, Industrial
Material: Glass fiber reinforced polyester, Silver-plated copper, Glass fiber wrapped solid pultruded core, Viton, ARC BARRIER
Pole: 3-Pole, 1-pole
Why Us?
- Reliable Supply Chain
- Quick Response
- Technical Support
- Genuine Product Authorization
Description
| Product name | Oil-immersed Four-position Sectionalizing Loadbreak Switch |
| Rated current | 630A |
| Type | Oil-immersed Four-position Sectionalizing Loadbreak Switch |
| Rated voltage | 38KV |
| Model | -38kV/200A/3P: LS4RHBV316 (horizontal/ MBB/V-blade） |
| -15kV/630A/3P: LS4RHS312 (horizontal/ BBM/Straight-blade） | |
| Material | -Main body: Glass fiber reinforced polyester |
| -Contact: Silver-plated copper (MBB structure with arc extinguishing plate) | |
| -Axis: Glass fiber wrapped solid pultruded core | |
| -Sealing ring: Viton | |
| -Arc extinguishing component: ARC BARRIER (resin partition) | |
| Color | White |
Function
1. Backup power switching for ring network type American box transformer/ring network cabinet, supporting 360 ° rotation source selection to reduce ferromagnetic resonance;
2. In industrial and commercial power distribution, the current of the opening/closing cable tap is adapted to a fault level of 12-16kA;
3. The MBB (first closed, then disconnected) model achieves uninterrupted switching, improving power supply reliability
Feature
1. Oil-Immersed Protection
Superior insulation/arc-extinguishing, IP54+ dust/moisture-proof, durable in harsh outdoors.
2. 4-Position Versatility
On/Off/Ground/Ring-Change, meets ring-network power supply & load transfer needs.

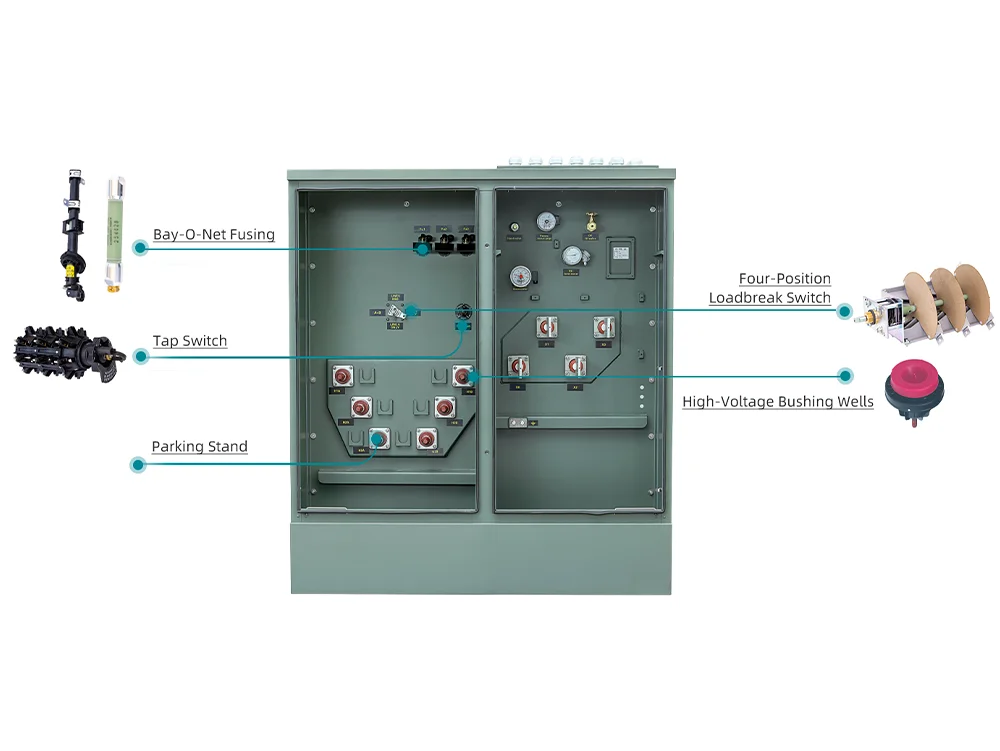

3. Compact Ring-Net Adaptation
Tank-mountable, fits American compact design, and reduces wiring failures.
4. Reliable On-Load Switching
Handles ≤1000kVA load, strong arc-extinguishing for medium-voltage distribution.
5. Low O&M & Interlock Safety
No complex electronics, minimal maintenance; interlock design prevents misoperation.
